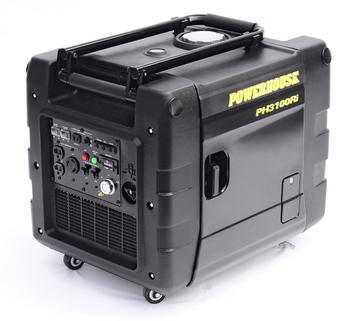

PowerHouse PH3100Ri Generator (69273)


Powerhouse PH3100Ri Inverter Generator:

  • 3000 Watts continuous / 3100 Watts surge
  • One 5-20R 20 amp duplex receptacle; one L5-30R 30 amp twist lock receptacle
  • Built-in hour meter to track the total run time
  • Continuous run time 5.6 hrs at full load; or 13.1 hrs at ¼ load
  • Factory installed swivel wheels and pull handle for maximum maneuverability
  • Remote electric start to 75-feet away
  • Internal circuit breaker, fuel gauge, automatic low oil shutdown and emergency stop control
  • EPA, CSA, CARB, ISO, IC and FCC compliant
  • 2-year consumer / 1-year commercial warranty

From the campsite to the jobsite, the PH3100Ri delivers a great combination of performance and value…3000 watts of continuous power, 3100 maximum power from its powerful 6.8 HP, 4-stroke engine. The PH3100Ri delivers the extra power needed to start and run a 13.5K RV air conditioner, while inverter technology makes it safe enough to power delicate electronic equipment. Remote electric start, 4 factory installed wheels and a fold-down pull handle for maximum convenience. Engine power can be set to run at variable speed for fuel economy or at constant speed for full power.

AC Output: Rated / Max (Watts) 3000 / 3100 W
Continuous Run Time (hr)
(Full Load / 1/4 Load)
5.6 / 13.1 hrs
Dry Weight (lbs) 129 lbs
Generator Dimensions 20.5"H x 17.8"W x 23.6"W
Noise Level @ 23 ft.
(Zero Load / Full Load)
56 / 65 dB
Automatic Low Oil Shutdown Yes
Certifications EPA, CSA, CARB, ISO, IC, FCC
Choke Auto/Electric
DC Output 12 V - 8.3 A
Electric Circuit Breaker Inverter Controlled and Panel Mounted
Engine Type Single Cylinder, 4-Stroke OHV, Air-Cooled, Gasoline
Fuel Economy Switch Yes
Fuel Type Unleaded Gasoline
Fuel Tank Capacity (gal) 4.4 gal
Horsepower (hp) / Displacement 6.8 hp / 270 cc
Ignition System Electronic Ignition
Max Current (A) 25.8 A
Max Output (kW) 3.1 kW
Oil Capacity (oz) 33.8 oz
Oil Type 15W-40
Overload Reset Switch Yes
Primer Bulb No
Rated Current (A) 25 A
Rated Frequency (Hz) 60 Hz
Rated Output (kW) 3.0 kW
Rated Voltage (V) 120 V
Receptacles One 120 V, 20 A 5-20R Duplex; One 120 V, 30 A L5-30R
Starting System Remote, Electric & Recoil
